Stop Condensation Damage Inside Your Control Panels
Peltier semiconductor dehumidifiers for MCC, PCC, PLC, VFD and APFC panels — actively remove moisture instead of just holding back the dew point like a heater does.
A Heater Holds Back Condensation. A Dehumidifier Removes It.
What Condensation Does to a Panel
- Corrosion on busbars, terminals and steel structural parts
- Insulation breakdown and secondary-terminal failure
- Nuisance trips and unexplained faults after humid nights
- Mildew on PCBs and reduced service life of drives/PLCs
Active Semiconductor Dehumidification
- Fan actively draws humid air across a Peltier cooling element
- Moisture condenses and drains out through a water pipe — not just held back
- Runs only above your set humidity/temperature threshold
- Optional RS485/Modbus reporting into your existing panel controls
Why Choose Digital Controls for Panel Dehumidifiers?
Solid-State Reliability
No compressor, no desiccant to replace — a Peltier element with no moving refrigeration parts
Built for Harsh Sites
Rated for outdoor switchgear, ring main units and coastal humidity
RS485/Modbus Ready
Reports into the same PLC/SCADA already monitoring your panel
Drop-In Fit
DIN-rail and panel-mount models sized for MCC/PCC/PLC/VFD/APFC enclosures
Genuine Components
Factory-sourced semiconductor dehumidifiers, not generic desiccant boxes
Pan-India Support
Same engineers who already quote and commission your panels
Find the Right Dehumidifier for Your Panel
From compact PLC enclosures to large outdoor switchgear — sized to match the panel types we already build for you.

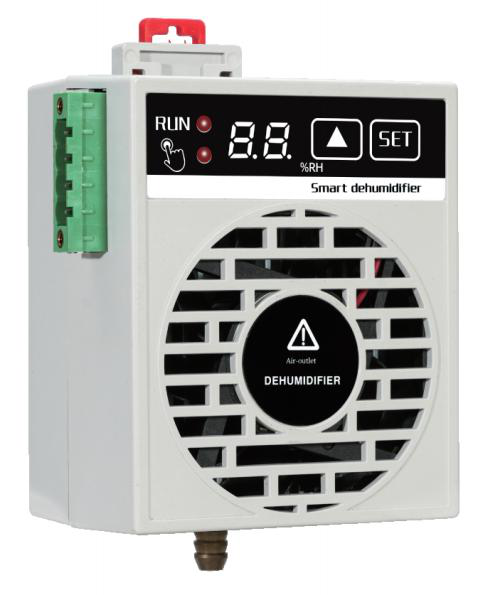

DryGuard 15
Model: CZCS880
Compact Cabinet Dehumidifier
Small semiconductor dehumidifier for sealed enclosures up to 0.5m³ — ABS housing, RS485 output, minimal footprint.
Best fit: PLC & automation panels

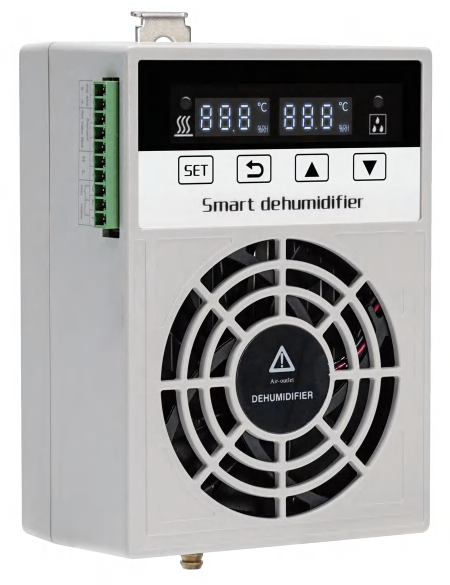

DryGuard 60
Model: CZCS860
Standard DIN-Rail Dehumidifier
DIN-rail mounted unit for 0.5–1m³ enclosures, delivering 400ml/day dehumidification — drops straight into an existing panel layout.
Best fit: MCC & distribution panels

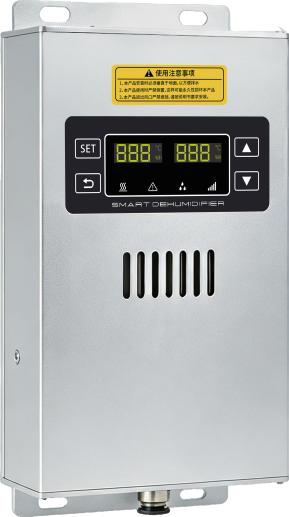

DryGuard 60 Pro
Model: CSAU60
Aluminum-Bodied Dehumidifier
Aluminum-alloy bodied unit for 1–2m³ enclosures, rated 500ml/day, extended -30~55°C operating range for harsher sites.
Best fit: PCC & multi-cubicle panels

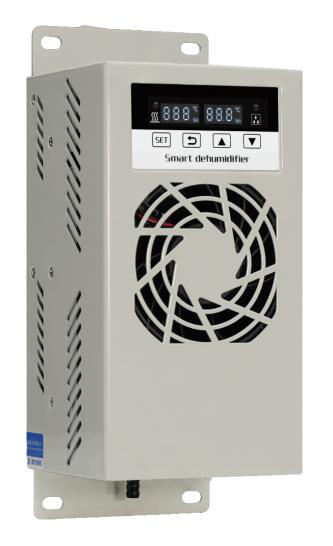

DryGuard 120
Model: CZCS1000AX
Heavy-Duty Dehumidifier
120W unit for 2–3.5m³ enclosures, rated 1000ml/day, sprayed sheet-metal housing built for demanding, outdoor-exposed enclosures.
Best fit: APFC & outdoor switchgear
Used Wherever Condensation Threatens Electronics
How the Dehumidifier Protects Your Panel
Built-in sensor monitors humidity 24/7 against your set threshold
Fan draws humid cabinet air across the semiconductor cooling element
Water vapor condenses and drains out through the water pipe
Optional RS485/Modbus reports status to your panel's PLC/SCADA
Why Buy from Digital Controls?
Fast Quotation
Get detailed quotes within 24 hours
Technical Support
Expert help sizing the right dehumidifier to your enclosure
Genuine Components
Factory-sourced semiconductor dehumidifiers with warranty
Competitive Pricing
Transparent, itemized quotations
Pan-India Supply
We deliver across every state
Bundle with Your Panel Order
Add it to an existing MCC/PCC/PLC/VFD panel quote — one supplier, one delivery
Talk directly to an engineer — no call centres, no waiting.
Get a Quote for Your Panel Dehumidifier
Share your enclosure size and application — or an existing panel order — and our engineers will respond with the right model and pricing within 24 hours.
Frequently Asked Questions
Protect Your Next Panel From Condensation Damage
Our engineers can size the right dehumidifier for your enclosure and bundle it with your panel order. Talk to us today.
